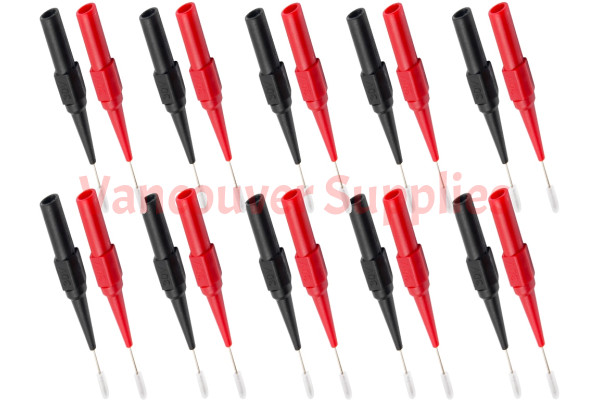

10 Pairs Needle Test Leads Automotive Back Probes Female Banana Socket

The test probes are suitable for back-probing harness connectors and automotive sensors, helps to diagnose the problem without damaging the harness or splicing into the equipment wires. This set includes 10 pairs of sharp needle probes. Each needle probe comes with standard 4mm female socket to connect banana plug harness; applications include automotive, industrial, HVAC, electrical, marine and more.

Feature:

• Set includes ten pairs of red and black needle probes
• Used for back-probing harness connectors and automotive sensors without cutting into the wires
• The needle is made of stainless steel, very thin and hard, has excellent corrosion resistance
• Able to pierce the cable shield for testing without cutting the conductor protector
• Probes can be used for diagnosing automotive, industrial, HVAC, electrical, marine and other equipment

Specifications:

• Model: 10PR-SET
• Material: copper, stainless steel, plastic
• Rated voltage: 30V at 10Amp
• Needles are 20mm long and 0.7mm in diameter
• Overall length: 3.2in or 82mm
• Back probe round socket diameter: 4mm
• Color coded: red and black
• Weight: 2.4oz or 68g

Package includes:

• 10 pairs of needle probes (10 red and 10 black)
